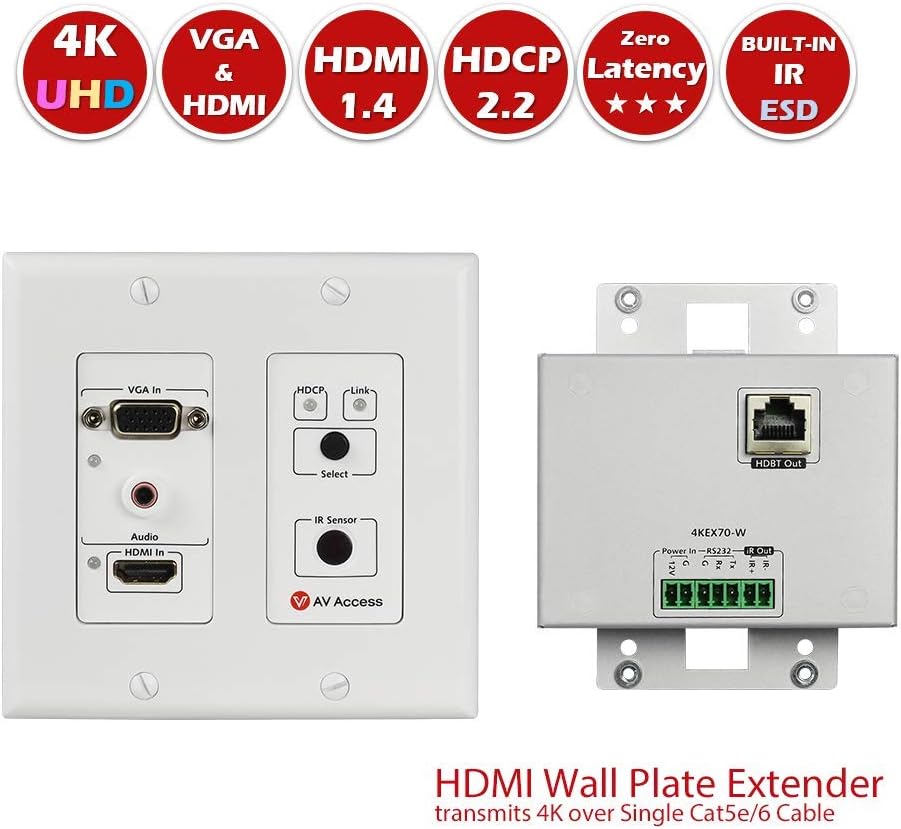

HDMI Extender Wall Plate HDMI VGA Switch 4K, 2 Port, Over Cat5e/6/7 Cable, Aux Input, Two-Way IR+RS232+HDCP2.2+EDID, 2 Gang, 4K60Hz,70M 1080P M38686
Sale price
$17.95
Regular price $76.28
Skip to product information
【VGA HDMI Auto Switch to HDBT Output】Co-Work with [B073QLKSSG] HDMI and VGA inputs (HDMI Input Priority) to a HDBT output. HDMI input supports resolution up to 4K@60Hz-Chroma:4:2:0 (8bit),4K and 1080P Over single CAT5e / CAT6 / CAT7 Ethernet cable. Recommended cables: CAT6a/7: 4K(40M),1080P(70M). CAT5e/6: 4K(35M),1080P(60M).
【 PoE / PoC & Bi-directional IR】Wide brand IR control(30-55kHz). Enable to get power from the POE receiver side. Provides extra Phoenix Male interface for power supply when your current receiver is not POE supported.

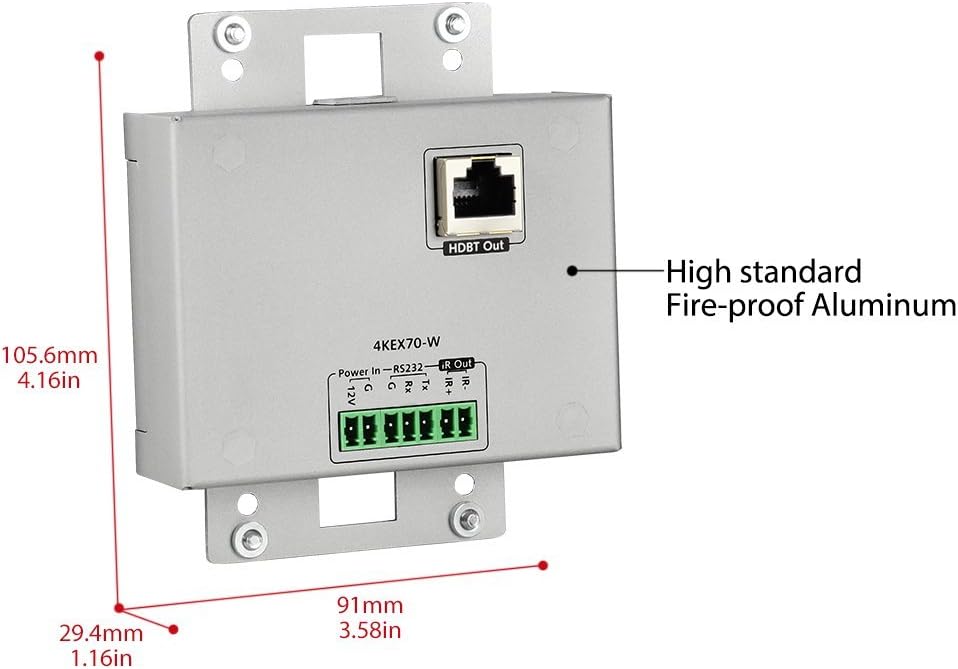

【Aluminum material】Guarantees a better cooling. 2-Gang US Decora Wall Plate Cover is offered. Preventing Strikes, built-in Surge & ESD Protection.

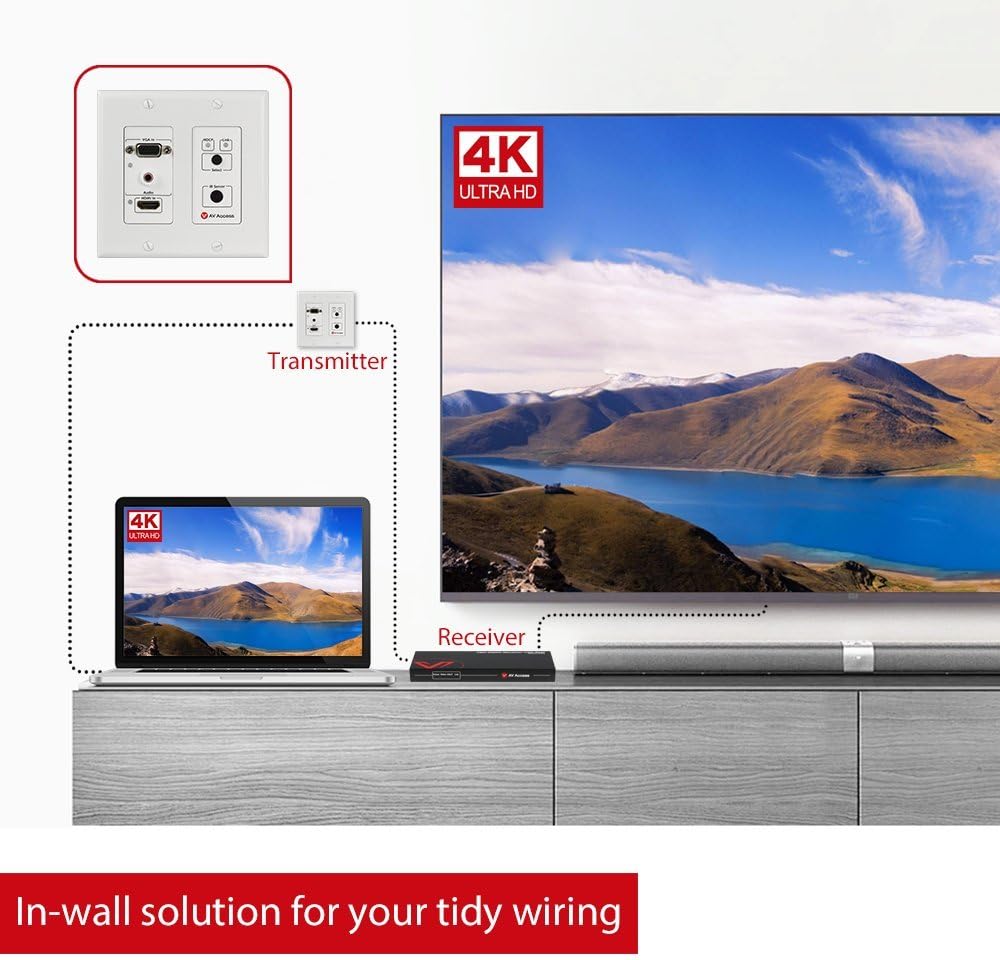

【Co-Work with Receiver [B073QLKSSG] 】This is only a Wall Plate (transmitter), we recommend it works with AV Access hdmi receiver【ASIN: B073QLKSSG】. If you work with other HDBaseT Receivers, both Wall plate transmitter and the receiver must be powered by power adapter.
【High Compatibility】With your PC, PS3 / PS4, DVD Player, Satellite Box, Cable Box,Android Box etc. 1-year Warranty. Premium HDMI cable and CAT cable for great 4K signal transmission.
HDMI Extender Wall Plate HDMI VGA Switch 4K, 2 Port, Over Cat5e/6/7 Cable, Aux Input, Two-Way IR+RS232+HDCP2.2+EDID, 2 Gang, 4K60Hz,70M 1080P M38686
Sale price
$17.95
Regular price $76.28
Shipping calculated at checkout.
【VGA HDMI Auto Switch to HDBT Output】Co-Work with [B073QLKSSG] HDMI and VGA inputs (HDMI Input Priority) to a HDBT output. HDMI input supports resolution up to 4K@60Hz-Chroma:4:2:0 (8bit),4K and 1080P Over single CAT5e / CAT6 / CAT7 Ethernet cable. Recommended cables: CAT6a/7: 4K(40M),1080P(70M). CAT5e/6: 4K(35M),1080P(60M).
【 PoE / PoC & Bi-directional IR】Wide brand IR control(30-55kHz). Enable to get power from the POE receiver side. Provides extra Phoenix Male interface for power supply when your current receiver is not POE supported.
【Aluminum material】Guarantees a better cooling. 2-Gang US Decora Wall Plate Cover is offered. Preventing Strikes, built-in Surge & ESD Protection.
【Co-Work with Receiver [B073QLKSSG] 】This is only a Wall Plate (transmitter), we recommend it works with AV Access hdmi receiver【ASIN: B073QLKSSG】. If you work with other HDBaseT Receivers, both Wall plate transmitter and the receiver must be powered by power adapter.
【High Compatibility】With your PC, PS3 / PS4, DVD Player, Satellite Box, Cable Box,Android Box etc. 1-year Warranty. Premium HDMI cable and CAT cable for great 4K signal transmission.
| 4KEX70-VH | 4KEX70-W(Transmitter Only) | 4KEX70-R-PSE(Receiver Only) | 4KSW21-L | |
|---|---|---|---|---|
| Supported Resolution | HDMI:4K@60Hz (4:2:0 8bit). VGA:1920x1200 | HDMI:4K@60Hz (4:2:0 8bit). VGA:1920x1200 | 4K@60Hz (4:2:0 8bit), 4K@30Hz 4:4:4, 1080p @60Hz, 3D | 4K@60Hz (4:2:0 8bit), 4K@30Hz 4:4:4, 1080p @60Hz, 3D |
| Transmission Range | 230ft (70m): 1080P. 130ft (40m): UHD 4K@60Hz 4:2:0 | 230ft (70m): 1080P. 130ft (40m): UHD 4K@60Hz 4:2:0 | 230ft (70m): 1080P. 130ft (40m): UHD 4K@60Hz 4:2:0 | HDMI+VGA to HDMI Switch |
| IR Control | Bi-Direction | Bi-Direction | Bi-Direction | |
| HDMI | 1.4 | 1.4 | 1.4 | 1.4 |
| HDCP | 2.2 | 2.2 | 2.2 | HDCP compliant |
| POE | Uni-Direction(TX to RX) | Depend on Receiver | ||
| RS232 | Yes | Yes | Yes | |
| HDR | 4K30Hz | 4K30Hz | 4K30Hz | 4K30Hz |
