48-Channel UHF Wireless Microphone System R932407
48-Channel UHF Wireless Microphone System R932407

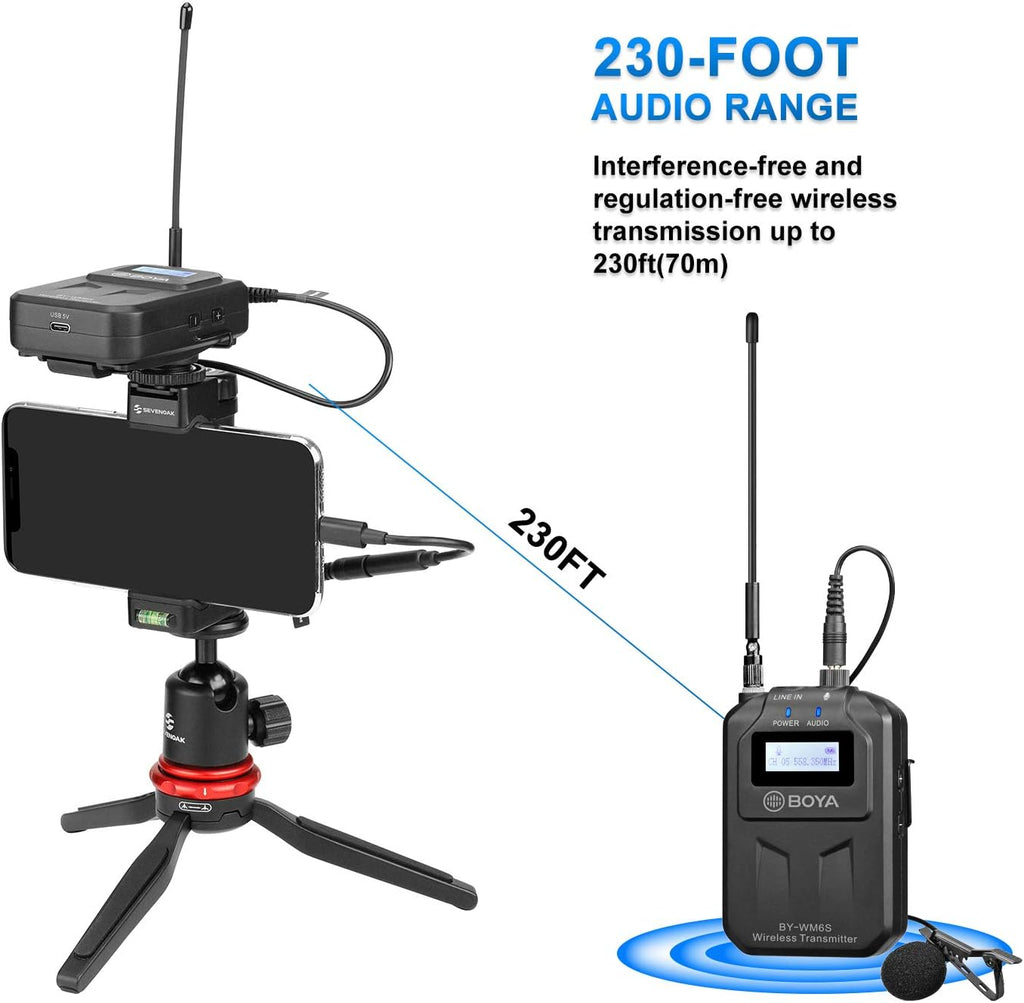

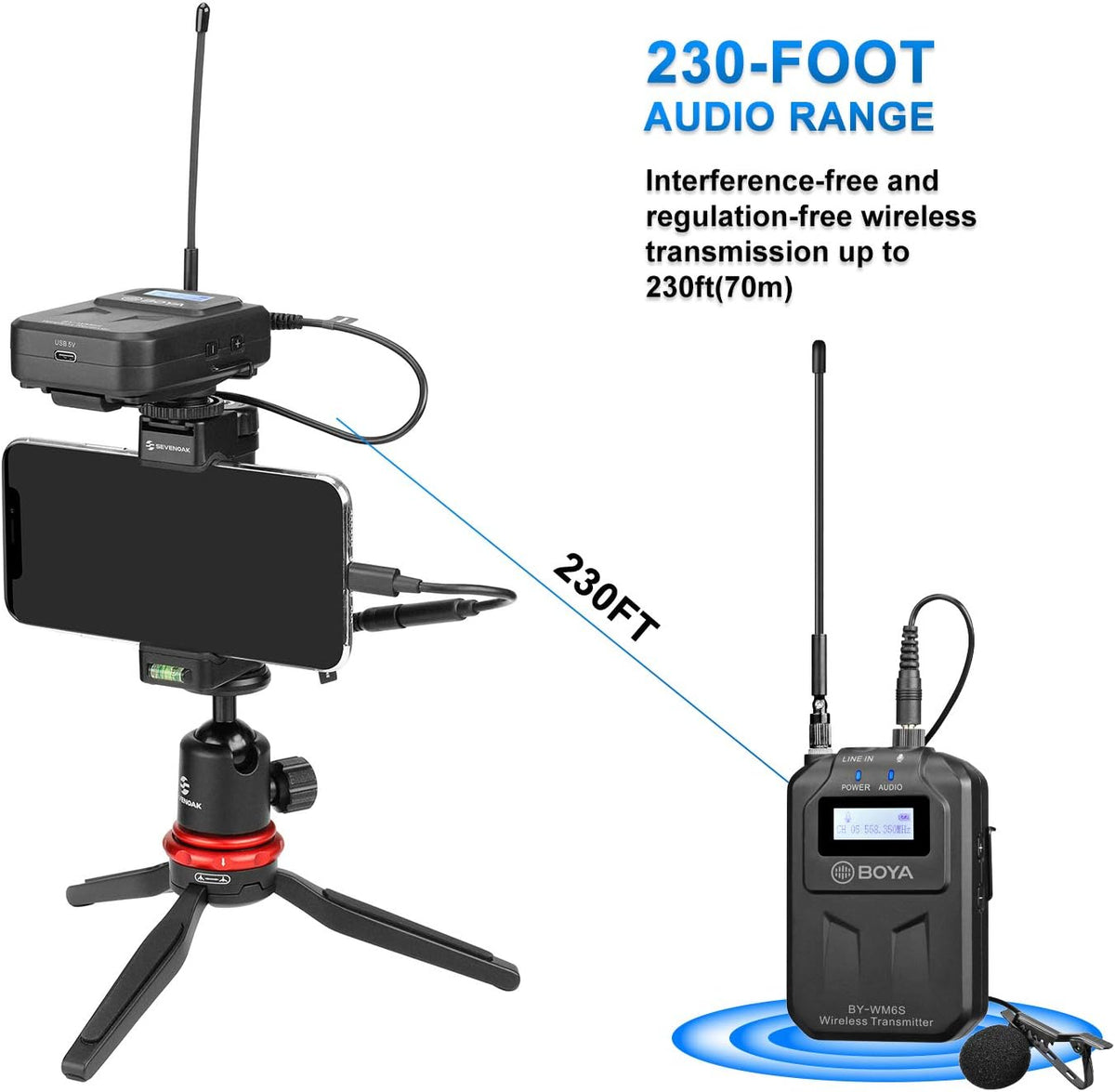

UHF TRANSMISSION WITH 48 CHANNELS : Capture reliable, crystal-clear audio up to 230-feet (70m) away on the 556.71-575.98MHz UHF frequency range without interference. Operates 48 channels transmission

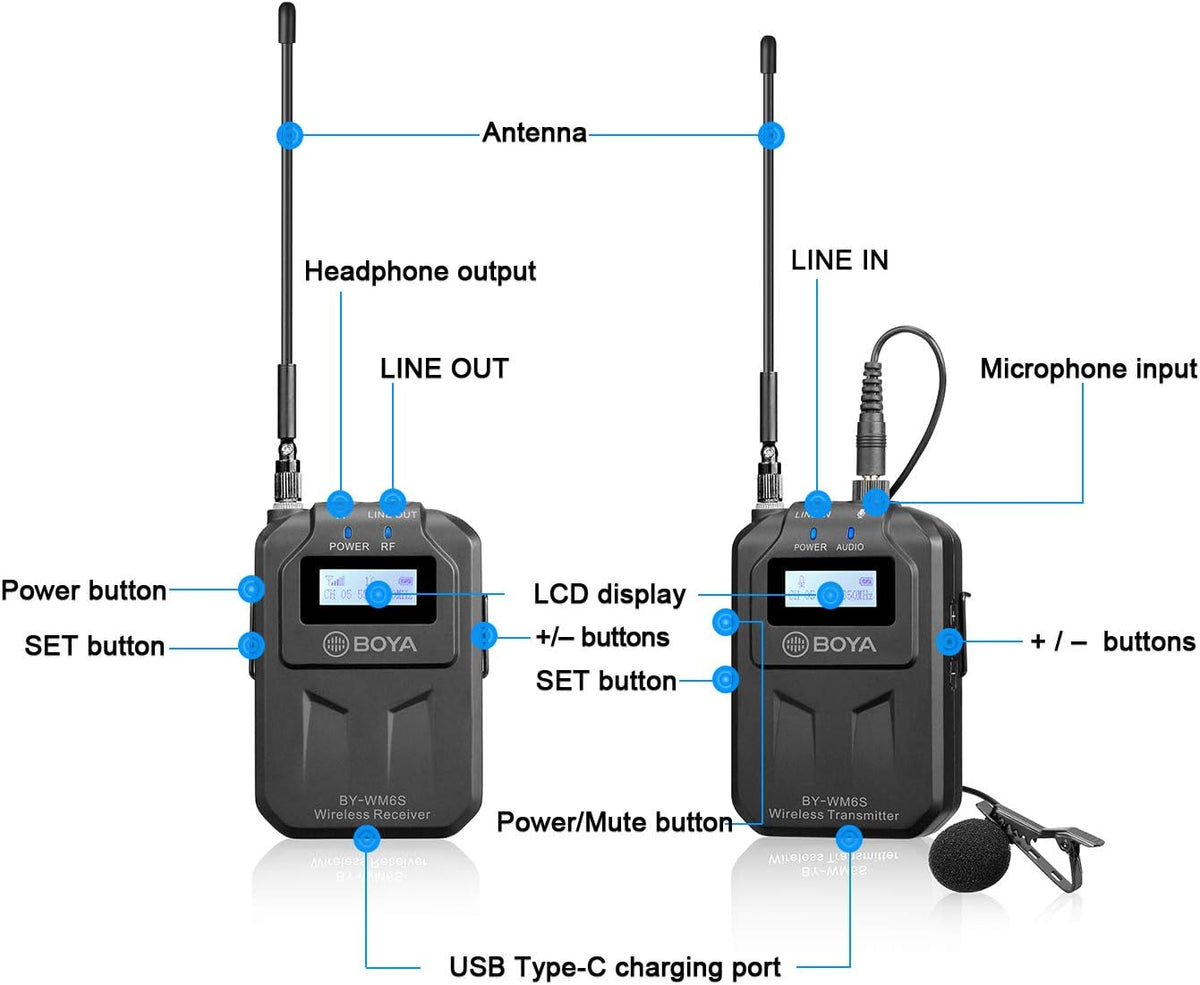

CONVENIENT: Listen to your audio live with headphone monitoring to ensure accurate sound recording, and if you need to pause, click the mute button. Designed with a compact and rugged housing and a detachable antenna that easily carries to indoor and outdoor environments.Built-in rechargeable batteries or powered by Type-C DC 5V.
HIGH-QUALITY AUDIO: With low-interference capacity and UHF transmission with true-diversity reception, it helps users guard against many kinds of troubles, even under difficult shooting conditions, and delivers the broadcast sound quality and integrity of audio.
ONE YEAR BOYA WARRANTY
Overview
The BOYA BY-WM6S is a new generation UHF wireless microphone system, compatible with smartphone, tablet, DSLR camera, camcorder,audio recorder and more.
With low-interference capacity and UHF transmission with true-diversity reception, it helps users guard against many kinds of troubles,
even under difficult shooting conditions, and delivers the broadcast sound quality and integrity of audio.
It runs on built-in rechargeable batteries or powered by Type-C DC 5V.
This system is designed with a compact and rugged housing and a detachable antenna that easily carries to indoor and outdoor environments.
Specifications
Channel number: 48
Oscillator type: PLL synthesizer
Carrier frequencies： 556.710-575.980MHz
Reference deviation: +/-5KHZ(-60dBV, 1KHz input)
Signal to noise ratio: 82dB or more
RF output power: 10mW
Distortion: 0.1% or less
Antenna: 1/4λ wire antenna
Headphone output level: 30mW(16 ohm)
Receive sensitivity: -98dBm
Frequency respose: 40Hz to 18KHz (+/-3dB)
Reference audio input level: -60dBV (MIC input. 0dB attenuation)
Power requirement: Built-in Li-ion battery 1600mAh DC5V (USB TYPE-C)
Dimensions: 60x24x90mm (2.4”x0.9”x3.5”)
Weight: 149g (5.3oz)
